EPS Foam Cups Steam Chest Molding System

A turnkey system of cup molding machine for insulated foam glass production.

  • Material: EPS Beads
  • Cup Size: 8oz and other sizes of EPS foam cups
  • Cycle speed: 9 sec per cycle (for 8oz)
  • Weight: 8oz cup is about 2 gram
  • productivity: 4,000/8hr/machine
Model:

Features

Sunwell Global is able to offer turnkey solutions for the production of EPS cups (Foam Cup Machine). The process starts by expanding the gas filled beads through a continuous pre-expander with a maximum throughput of 250kg/h using beads for multiple molding machines. The beads are air dried across a fluid bed and sieved to ensure size consistency.

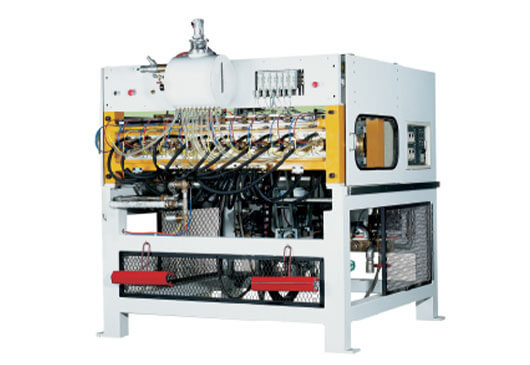

The dry expanded beads are transported by blower to storage / aging bags before being conveyed to the molding machines.Sunwell 10 cavity molding machines move horizontally driven by a pneumatic–mechanical toggle system to give powerful clamping forces and high productivity. Design improvements to machine and tooling have led to faster heating and cooling times, reducing steam and energy consumption.

The molding machine is controlled by PLC with a touch screen interface and faster cycle times have improved productivity and reduced floor space requirements. Sunwell provides cup unscrambling and collecting systems with the option of an automatic and continuous leak detection system.

Automatic counting and bagging equipment can also be provided capable of accepting stacks from 4 machines and packing 1 to 3 stacks per bag at a rate of 25 stacks per minute.

Applications

Insulated Drink Cups
Insulated Drink Cups

Specifications

MODEL Foam Cup Machine(EP-200)
Products
Coffee or Tea Cups; Ice Cream or Instant Noodle Tubs
Materials
EPS Beads
Forming Type
Steam Pressure / Injection
Cavities
8~10
Cup’s Density
0.045 ~0.1 g/cm3
Platen movement
Horizontal
Drive
Pneumatic Toggle System
Product Height
44 ~ 220mm
Product Dia.
65 ~150mm
Valve
GEMU; SCHUBERT; SALZER
System control
PLC with touch screen control
Cups productivity
2,500 ~ 5,000 cups/hr per machine
Electric consumption
10 ~15 kW
Steam consumption
150 ~ 200 kg/hr 8 bar
Air consumption
1 M3/Min. 7 bar
Cooling Capacity
500kW per machine
Space requirement
1,000 m2
