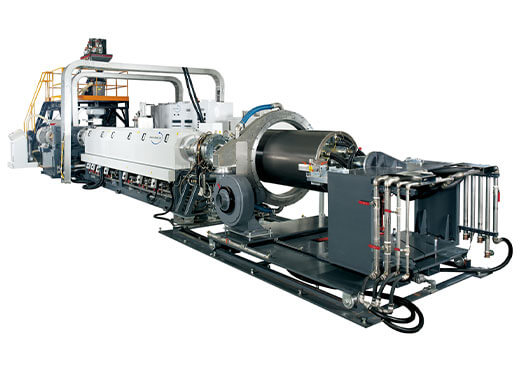

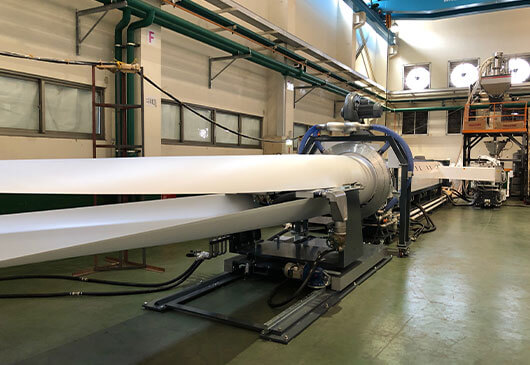

Foam Sheet Extrusion Lines
Foam sheet extrusion line with tandem technology & high productiviy processing.
- Material: EPS, EPE, EPP, EPET, EPLA
- Material Thickness: 0.5-12mm (details see specification)
- Output: 220-900 kg/hr (details see specification)
- Density: EPS: 35-250 / EPE: 17-30 / EPP: 35-250
Features
Sunwell Global is a leader in foam sheet extrusion lines, offering advanced solutions for food and protective packaging materials. Our foam sheet extrusion lines are designed to process materials like EPS, EPE, XPET, and EPP with output capacities ranging from 150 kg/h to 1000 kg/h.
- Automated Material Handling: Raw materials are automatically loaded and blended before entering the primary extruder, where a homogeneous melt is produced for consistent results.
- Precision Gas Metering: Hydrocarbon or CO2 gases are precisely metered using triple head ATEX-compliant diaphragm pumps with mass flow measurement, ensuring consistent foam density and high-quality output.

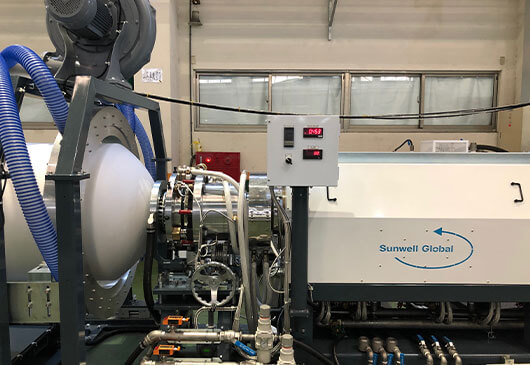

- Extrusion Technology: Ensures precise control and consistent processing for superior foam production, with low shear screws and motorized valve cooling to minimize temperature variations. All foam sheet extrusion lines come with either discrete controls or a user-friendly PLC touch screen control system, offering flexibility and easy operation for production optimization.

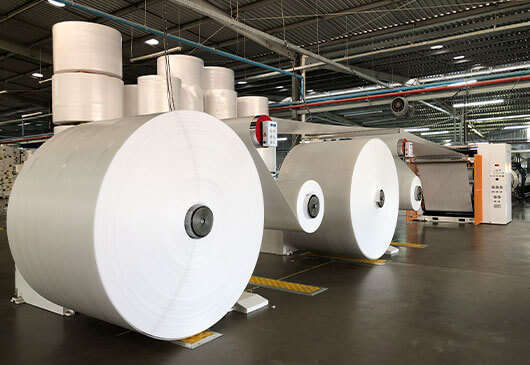

- Winding Systems: Haul-off and winding technology offers programmable tension control for improved efficiency.
Applications
To those convenient food containers for fast food packaging, tableware and coffe or cold drink, Sunwell equipment allows to supply production of various food packaging application.
Styrofoam Food Packaging
Poultry & Meat Trays
Specifications
| MODEL | FEX90120 | FEX100130 | FEX120150 | FEX150200 |
|---|---|---|---|---|
|
Material
|
EPS; EPE; EPP; EPET; EPLA
|
EPS; EPE; EPP; EPET; EPLA
|
EPS; EPE; EPP; EPET; EPLA
|
EPS; EPE; EPP; EPET; EPLA
|
|
Thickness (mm)
|
0.5 ~ 5
|
0.5 ~ 5
|
1 ~ 6
|
1 ~ 6
|
|
Width (mm)
|
700~2,000
|
1,000~2,400
|
1,500~3,000
|
1,500~3,000
|
|
Max. Throughput (kg/h)
|
EPS: 300
EPE: 220 EPP: 240 EPET: 350 EPLA: 300 |
EPS: 450
EPE: 350 EPP: 380 EPET: 500 EPLA: 450 |
EPS: 650
EPE: 480 EPP: 530 EPET: 600 EPLA: 600 |
EPS: 900
EPE: 700 EPP: 750 EPET: 750 EPLA: 750 |
|
Density (kg/M3)
|
EPS: 35 ~ 250
EPE: 17 ~ 40 EPP: 40 ~ 250 EPET: 90 ~ 450 EPLA: 90 ~ 400 |
EPS: 35 ~ 250
EPE: 17 ~ 40 EPP: 40 ~ 250 EPET: 90 ~ 450 EPLA: 90 ~ 400 |
EPS: 35 ~ 250
EPE: 17 ~ 40 EPP: 40 ~ 250 EPET: 90 ~ 450 EPLA: 90 ~ 400 |
EPS: 35 ~ 250
EPE: 17 ~ 40 EPP: 40 ~ 250 EPET: 90 ~ 450 EPLA: 90 ~ 400 |
|
Extruder Type
|
Tandem
|
Tandem
|
Tandem
|
Tandem
|
|
Screw dia. (mm)
|
90 and 120
|
100 and 130
|
120 and 150
|
150 and 200
|
|
L/D
|
34/1 and 32/1
|
34/1 and 32/1
|
34/1 and 32/1
|
34/1 and 32/1
|
|
Blowing agent
|
LEWA Triple Diaphragm Pump - Hydrocarbon
|
LEWA Triple Diaphragm Pump - Hydrocarbon
|
LEWA Triple Diaphragm Pump - Hydrocarbon
|
LEWA Triple Diaphragm Pump - Hydrocarbon
|
|
Drive System
|
SIEMENS AC Drive with FLENDER Gearbox
|
SIEMENS AC Drive with FLENDER Gearbox
|
SIEMENS AC Drive with FLENDER Gearbox
|
SIEMENS AC Drive with FLENDER Gearbox
|
|
Barrel material
|
Bimetallic
|
Bimetallic
|
Bimetallic
|
Bimetallic
|
|
Cooling system
|
Air Cool for Primary; Proportional Motorized Water Cool for Secondary
|
Air Cool for Primary; Proportional Motorized Water Cool for Secondary
|
Air Cool for Primary; Proportional Motorized Water Cool for Secondary
|
Air Cool for Primary; Proportional Motorized Water Cool for Secondary
|
|
Winder
|
Programmable Tension Control; 300mm Core 2,000mm Winding Dia
|
Programmable Tension Control; 300mm Core 2,000mm Winding Dia
|
Programmable Tension Control; 300mm Core 2,000mm Winding Dia
|
Programmable Tension Control; 300mm Core 2,000mm Winding Dia
|
|
Floor Space
|
25L x 6W x 5H M
|
33L x 6W x 5H M
|
35L x 6W x 5H M
|
37L x 6W x 5H M
|
|
Machine Weight
|
18,000 kg
|
22,000 kg
|
28,000 kg
|
34,000 kg
|
