MF Series Thermoforming Machine

Application of thermoforming machine for heavy duty deep draw mass production.

  • Forming Method: Pressure Forming
  • Maximum Sheet Width: 900-1460 mm (details see specification)
  • Maximum Dry Cycle Speed: 40 cycle/min (details see specification)
Model:

Features

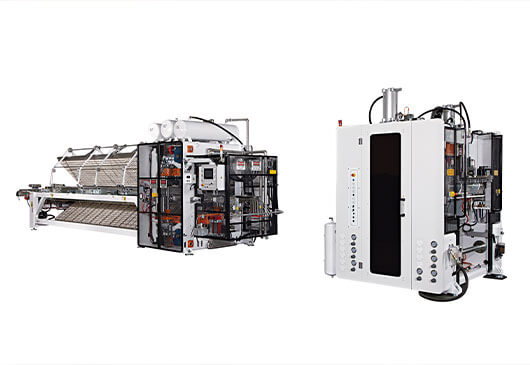

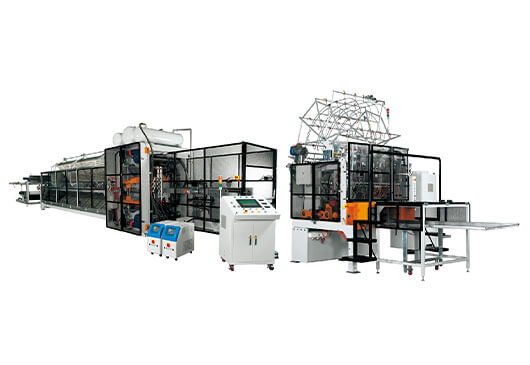

Sunwell manufactures MF series continuous separate station thermoforming machine for plastic products with high technology and efficiency. Precision controls and process capability allow the users to run a wide range of materials that include Polystyrene, Polypropylene, APET, and PLA. There are two stations, which are forming, followed by separate trim with scrap granulation automatically in-line.

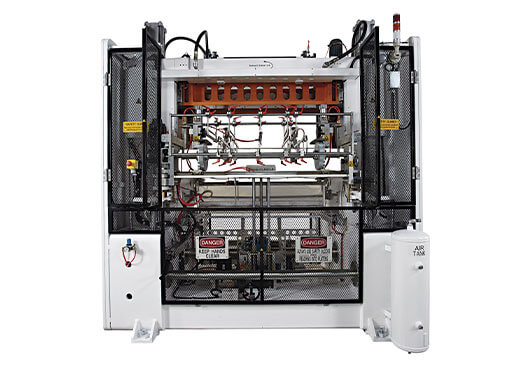

Sunwell’s thermoformer is driven by two(2) axis of servo action, linked to mechanical toggles which open and close the top and bottom platens independently.

The heat tunnel is mounted with high quality ceramic heating elements and equipped with multi controlled zones to ensure the temperature of the sheet is precisely managed. The chain feed index is controlled by a servo motor as well, for accurate index and synchronous signals for the program interface.

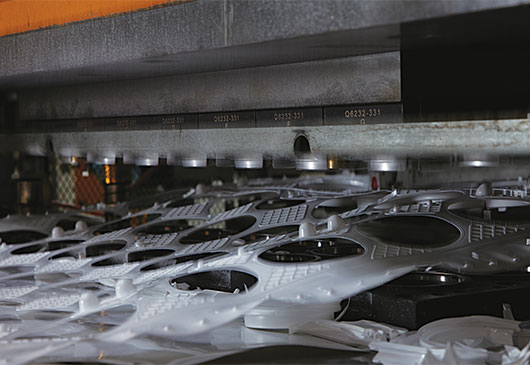

The horizontal (or optional vertical) trim press features the moving platen motion controlled through a servo motor and drive with additional stroke length to pre-punch and trim deep draw containers in a progressive trim application.

Two additional servo actions control the product index and eject functions, in order to precisely trim the finished product on to the packing table for packaging. The scrap web after trimming is fed into a granulator under trim press in-line to minimize the space requirement and manpower.

Applications

Plastic Cups / Tubs
Plastic Cups / Tubs
Lids
Lids
Food Containers
Food Containers
Fruit Punnets
Fruit Punnets
Plates / Dishes
Plates / Dishes
Styrofoam Food Packaging
Styrofoam Food Packaging
Poultry & Meat Trays
Poultry & Meat Trays

Specifications

MODEL MF850 MF1000 MF1200
Configuration
Forming front, post trim with scrap granulation inline
Forming front, post trim with scrap granulation inline
Forming front, post trim with scrap granulation inline
Application
Mass production
Mass production
Mass production
Forming method
Pressure and Vacuum
Pressure and Vacuum
Pressure and Vacuum
Forming direction
Either Above or Below Sheet Forming
Either Above or Below Sheet Forming
Either Above or Below Sheet Forming
Maximum Sheet Width
900 mm
1,050 mm
1,240 mm
Mold Size
(mm)
Max. 850 x 1,000
Min. 550 x 800
Max. 1,000 x 1,000
Min. 700 x 800
Max. 1,190 x 1,100
Min. 850 x 800
Forming Tonnage (ton)
80 tons
80 tons
80 tons
Max. Depth Draw (mm)
180
180
180
Shut-height (mm)
Top = 380
Bottom = 380
Top = 380
Bottom = 380
Top = 380
Bottom = 380
Platen Travel
Top = 190
Bottom = 190
Top = 190
Bottom = 190
Top = 190
Bottom = 190
Heat Tunnel Length (mm)
4,000
5,000
5,600
Heating Elements
Ceramic
Ceramic
Ceramic
In line with Trim Press
Horizontal or Vertical or alternative
Horizontal or Vertical or alternative
Horizontal or Vertical or alternative
Trim Press Drive
AC Servo; Crank reciprocated driven
AC Servo; Crank reciprocated driven
AC Servo; Crank reciprocated driven
Auto Counter Rotating
Option
Option
Option
Side Linear Guidance
Option
Option
Option
Trimming Max. Speed (CPM)
Standard 120
Option 160
Standard 120
Option 160
Standard 120
Option 160
Trimming Tonnage
35 tons
35 tons
35 tons
Control System
YASKAWA 3000
YASKAWA 3000
YASKAWA 3000
Floor Space (M)
22L x 3.8W x 5H M
22L x 3.8W x 5H M
24L x 4W x 5H M
Machine Weight
18,000 kg
20,000 kg
22,000 kg
